Comprehensive Analysis of Alloy 59 Properties and Applications

Alloy 59 (U.S. Standard ASTM B575 N06059) is a high-purity nickel-chromium-molybdenum alloy, serving as a critical material in chemical, energy, and other fields due to its exceptional corrosion resistance and high-temperature stability. Below is a detailed analysis of its specific properties and applications:

I. Core Performance Analysis

1. Corrosion Resistance Performance

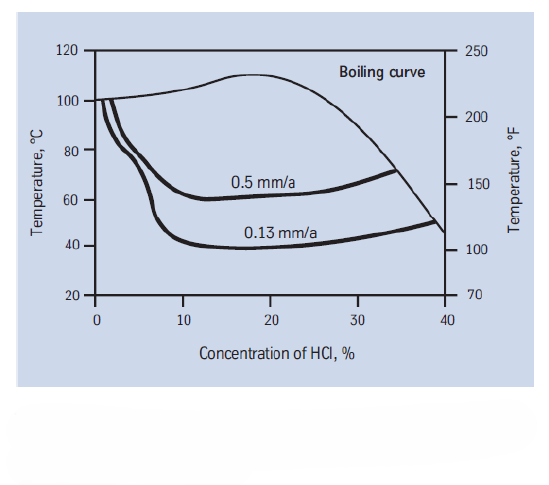

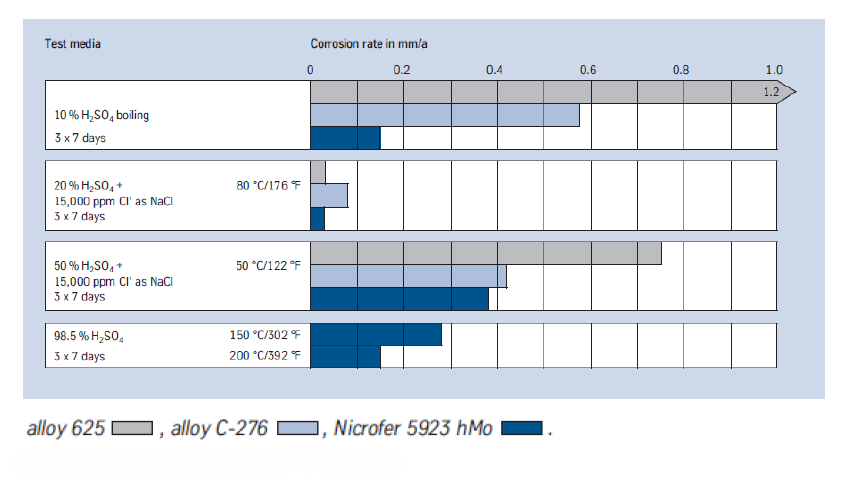

• Mixed Acid Media: Performs excellently in mixed acids like sulfuric and hydrochloric acid. For instance, the corrosion rate is ≤0.05 mm/year in boiling 40% sulfuric acid and ≤0.15 mm/year in 10% hydrochloric acid at 60°C, significantly outperforming Hastelloy C-276 and C-22. Its high chromium (22-24%) and molybdenum (15-16.5%) content forms a dense passive film, effectively resisting chloride ion attack.

• Pitting and Crevice Corrosion: The Critical Pitting Temperature (CPT) ≥100°C, and the Critical Crevice Corrosion Temperature (CCT) ≥80°C, which is among the highest for similar alloys. In wet hydrogen sulfide environments containing 5000 ppm Cl⁻, the stress corrosion cracking resistance life exceeds 5000 hours.

• Extreme Environment Certification: Certified by NACE MR0175/ISO 15156 Level VII and is suitable for acidic gas environments (e.g., H₂S, CO₂), and can also withstand pressure vessel conditions from -196°C to 450°C.

2. Mechanical Properties

• Room Temperature Properties: Tensile strength ≥690 MPa, Yield strength ≥340 MPa, Elongation ≥40%, combining high strength with excellent toughness.

• High-Temperature Stability: Maintains tensile strength ≥690 MPa, yield strength ≥340 MPa, and elongation ≥40% at 800°C, which is suitable for high-temperature oxidizing environments.

• Low-Temperature Performance: There is no embrittlement at -196°C, which meets the requirements for cryogenic equipment.

3. Fabrication and Welding Performance

• Hot Working: Temperature range of  1180-950°C, followed by water quenching or rapid air cooling. Solution annealing temperatures of 1100-1180°C ensures optimal corrosion resistance.

• Cold Working: Work hardening rate is higher than austenitic stainless steel. Low cutting speeds and heavy feed rates are recommended. Solution annealing is required after cold rolling with a deformation >15%.

• Welding Process: ERNiCrMo-13 filler metal is recommended using pulsed argon arc welding (GTAW-P/GMAW-P) techniques. Post-weld stress relief is not required, and there is no risk of intergranular corrosion.

II. Typical Application Areas

1. Chemical and Petrochemical Industry

• Reactors and Storage Tanks: Used for corrosion-resistant reaction vessels in acetic acid and acetic anhydride production, as well as sulfuric and hydrochloric acid storage containers. For example, in acetic acid synthesis, its intergranular corrosion resistance can extend equipment life by 3-5 times.

• Catalyst Systems: Resists pitting induced by Cl⁻ in acidic chloride catalyst environments, such as in ethylene oxide production.

• Pickling Equipment: Used in mixed acid pickling lines in the steel industry, resistant to corrosion in 10-20% HCl + FeCl₃ solutions, with an annual corrosion rate ≤0.1 mm.

2. Energy and Environmental Protection Fields

• Flue Gas Desulfurization (FGD): Components like scrubbers, reheaters, and wet gas fans, resistant to sulfurous acid solutions at pH 2-5 and Cl⁻ attack, with a lifespan more than 10 times longer than 316L stainless steel.

• Hydrogen Storage and Transportation: In the 2024 Beijing Daxing Hydrogen Energy Demonstration Zone project, Alloy 59 was used for high-pressure hydrogen storage tanks and gas transmission pipelines for hydrogen logistics vehicles. This successfully achieved 1300 km of inter-provincial transportation and cumulatively reduced carbon emissions by over 350 tons.

• Geothermal Equipment: In geothermal wells containing H₂S and CO₂, its corrosion resistance is superior to duplex stainless steel, and it can withstand high-temperature fluids up to 200°C.

3. Pulp and Paper Industry

• Digesters and Bleaching Equipment: Resistant to corrosion in cooking liquors containing ClO₂ and NaOH. In a 10% NaOH + NaClO solution at 70°C, the corrosion rate is ≤0.02 mm/year.

4. Marine and Shipbuilding Engineering

• Seawater Treatment Systems: Used in pre-treatment equipment for reverse osmosis membranes, as it has a resistance to seawater corrosion (containing 20000 ppm Cl⁻), with an annual corrosion rate <0.01 mm.

• Marine Diesel Engine Washers: In environments containing NaCl water mist, its pitting resistance is better than Hastelloy C-276, extending the maintenance cycle to 2 years.

III. Product Specifications and Supply

• Main Specifications:

• Sheet/Plate: Primarily available in coil form with a thickness of 0.6mm, complying with ASTM B575 standard.

• Manufacturer: VDM (Germany)

IV. Competitive Advantages and Selection Recommendations

• Comparison with Hastelloy C-276: Alloy 59 has a higher Mo content (15-17% vs 15-16.5%), resulting in a 30% lower corrosion rate in reducing acids, and a cost reduction of 10-15%.

• Alternative Solutions: In scenarios with lower Cl⁻ resistance requirements, it can partially replace Inconel 625, but note its slightly lower high-temperature strength.

• Customer Case: A petrochemical company replaced a hydrochloric acid regeneration tower made of 316L with Alloy 59, reducing annual maintenance costs from $500,000 to $120,000 and downtime by 80%.

V. Market Dynamics and Sales Strategy

• Industry Trends: Driven by the hydrogen energy industry, global demand for Alloy 59 is expected to grow by 18% in 2025, mainly for hydrogen storage equipment and hydrogen refueling station pipelines, particularly due to its reliability in H₂S/CO₂ environments.
